TOS Trenčín SN50/1500 overhauled lathe.
The lathe is finished from the mechanical part. Electrics and options to be finished based on customer’s specifications.
Installation options:
- digital readout
Optional accessories:
- 250/3 and 250/4 chuck
- 250 mm flange
- live center
- steady rest
- follow rest
Delivery time:
- circa 2-3 weeks
Warranty:
- 12 months
Request more information and a quotation by contacting us at [email protected]

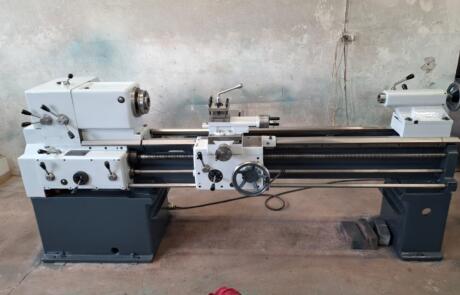

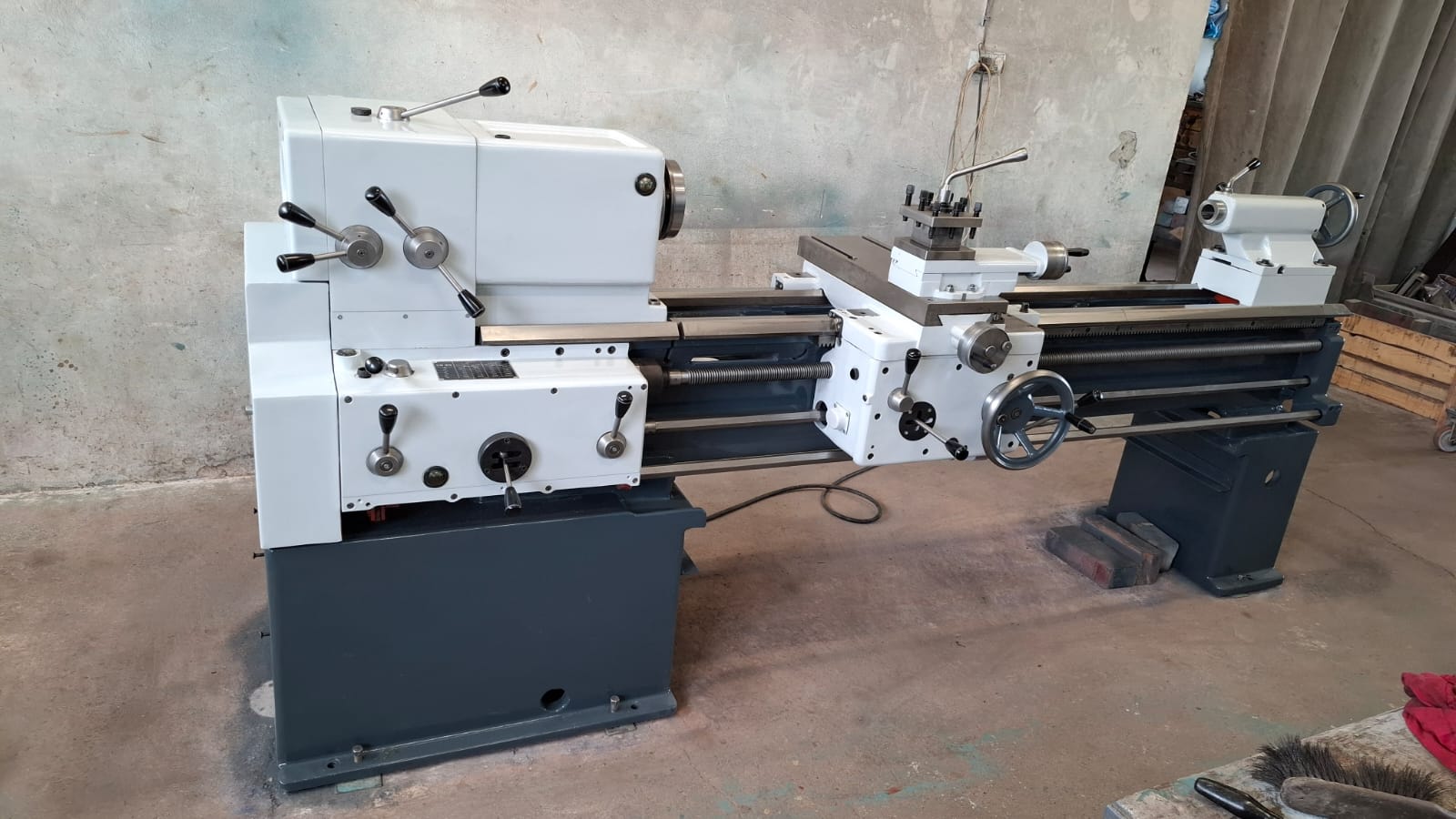

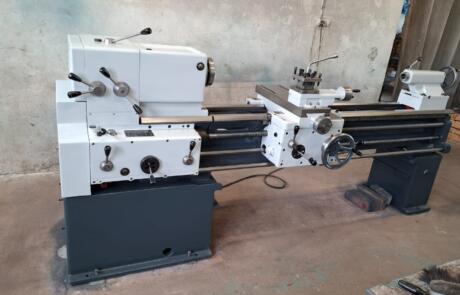

Pictures bellow are from the current state of the lathe. The last picture is a previous realisation.
Video
Video is from previous realisation.
Gallery
Technical data
| Technical data | Value |
|---|---|
| Max. swing over bed | 500 mm |
| Distance between centers | 1560 mm |
| Swing over carriage | 225 mm |
| Spindle bore | 50,80 mm |
| Internal spindle taper | MORSE 6 |
| Inner quill taper | MORSE 5 |
| Spindle nose | B6 |
| Spindle velocity – normal range | 45-2000 rev./min |
| Spindle velocity – decreased range | 22-1000 rev./min |
